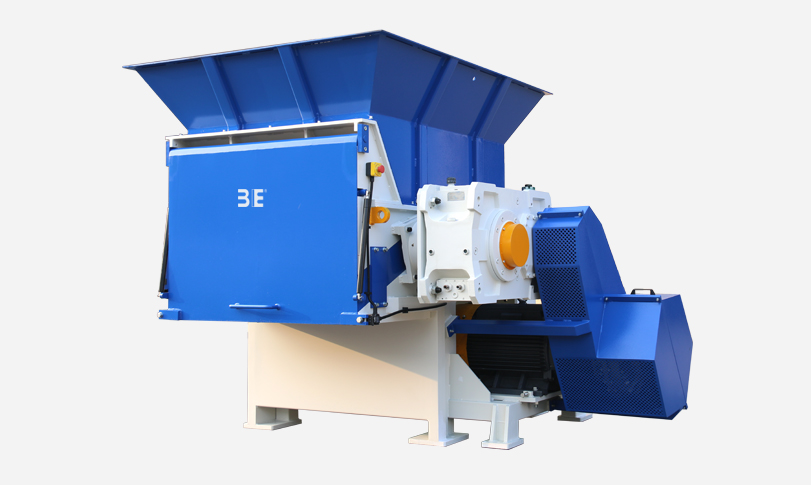

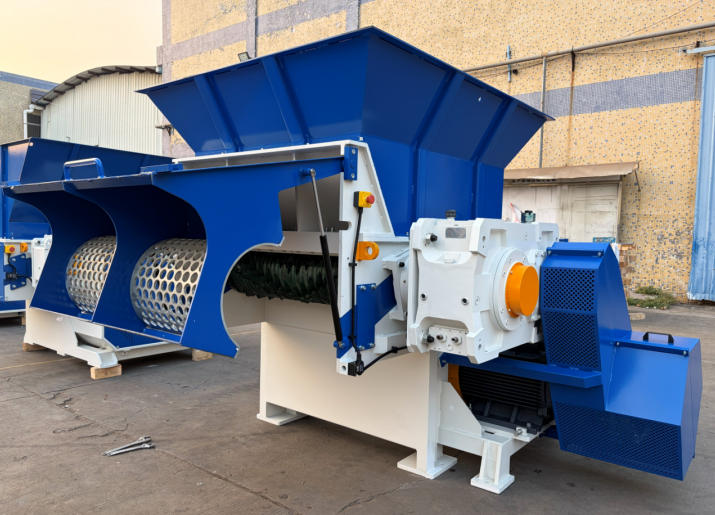

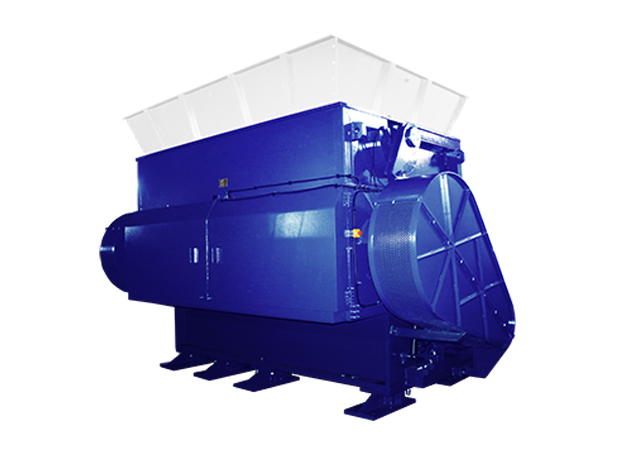

SINGLE SHAFT SHREDDER



Single-shaft rotary shredders from 3E are robust size-reduction machines that cut and shear material with a rotating rotor and hydraulically driven pusher. They process a wide range of feedstocks – from wood, plastics and paper to light metals – wherever small, consistent particle size and high throughput are required. Modular rotor and knife options let each machine be configured for coarse or fine shredding while remaining energy-efficient and easy to maintain for industrial and recycling applications.

끂 Download PDF

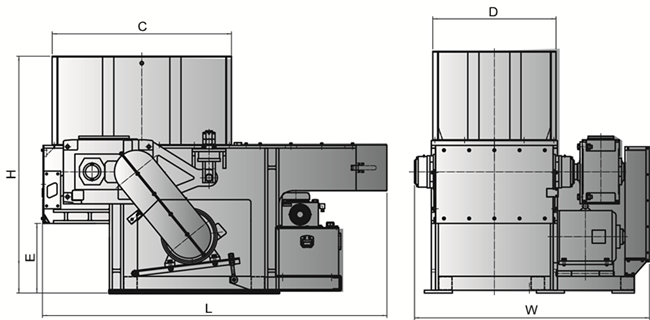

PARAMETERS

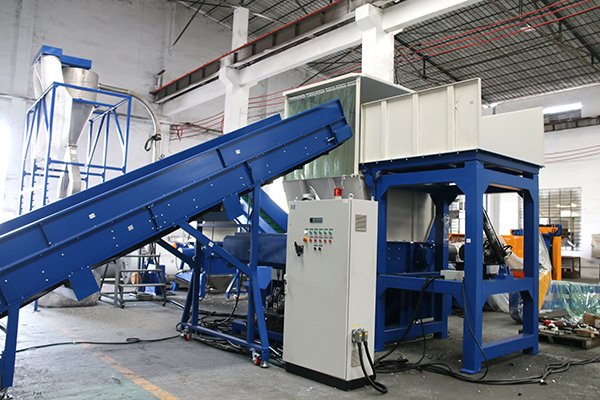

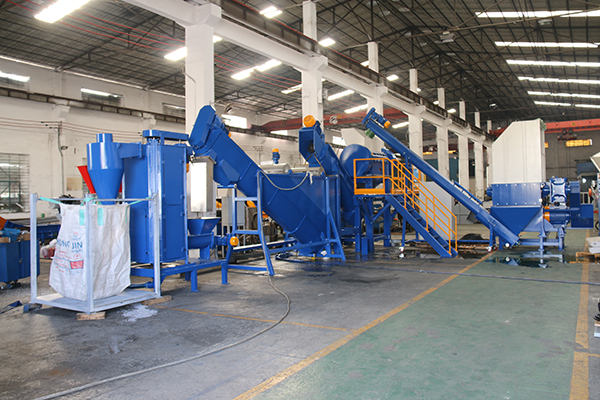

Success stories

You can see these waste materials being shredded

SERVICE REQUEST

Contact us now for a solution

Contact Us

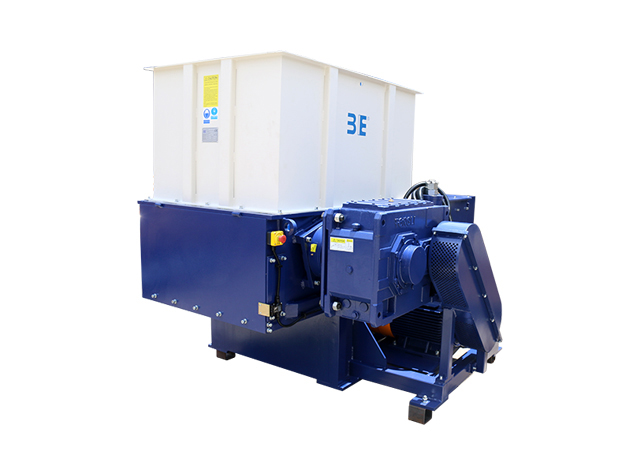

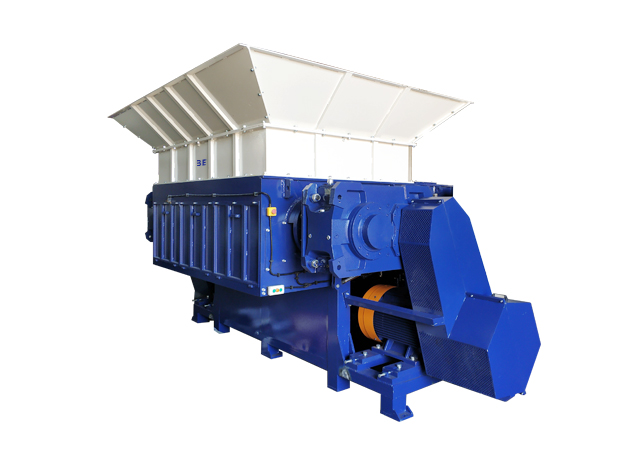

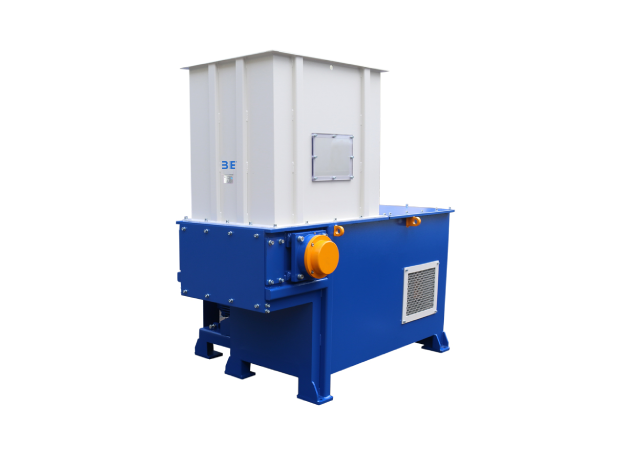

Our Best Sellers





Over the decades, many of our shredders have become true classics in the waste processing industry. The products of 3E Machinery Company have proven themselves thousands of times and are appreciated worldwide. The following machines are particularly popular at the moment.



넳 넲

Technical features

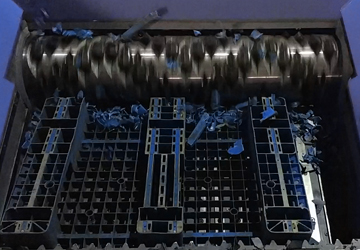

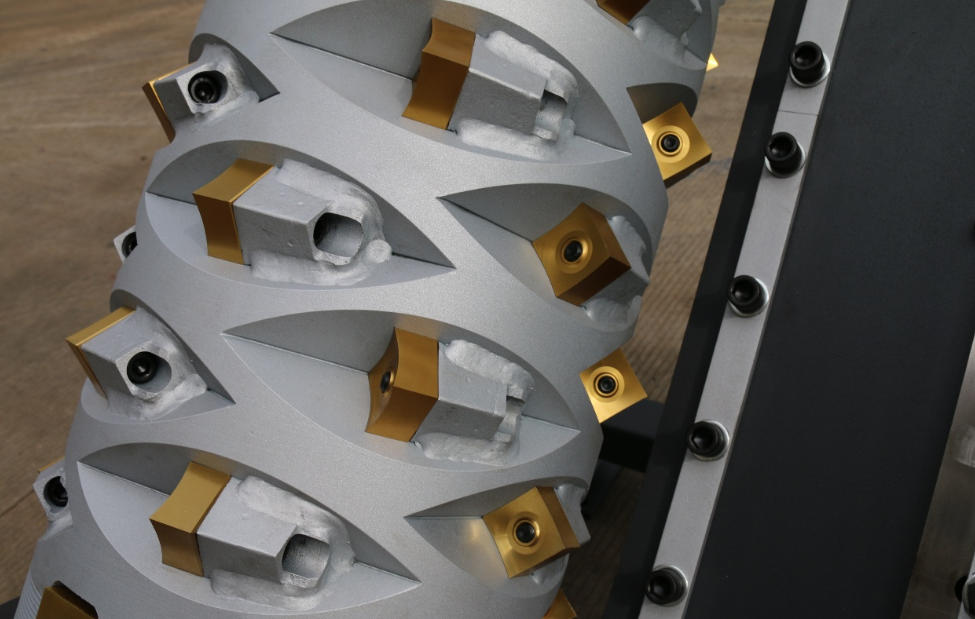

Rotor

Fitted with multiple cutters, which first shave material off the bulk and then carry the chips through the cutting zone between rotor knives and counter-knives for repeated shearing, delivering efficient size reduction and good particle-size control. Different rotor and knife configurations can be selected to suit the material, reliably shredding everything from rigid plastics and thick sections to soft films. The cutters are wear-resistant and reversible, allowing multiple edge changes and reducing downtime and maintenance costs.

  • Feeding system

    A horizontal hydraulic ram with a serrated pusher face feeds the material into the rotor. The ram is driven by an independent hydraulic power pack and can cycle automatically according to load or be controlled manually when required. A shock-protected hydraulic circuit ensures stable, continuous feeding of bulky and long parts while protecting the ram for a longer service life.

Safety system

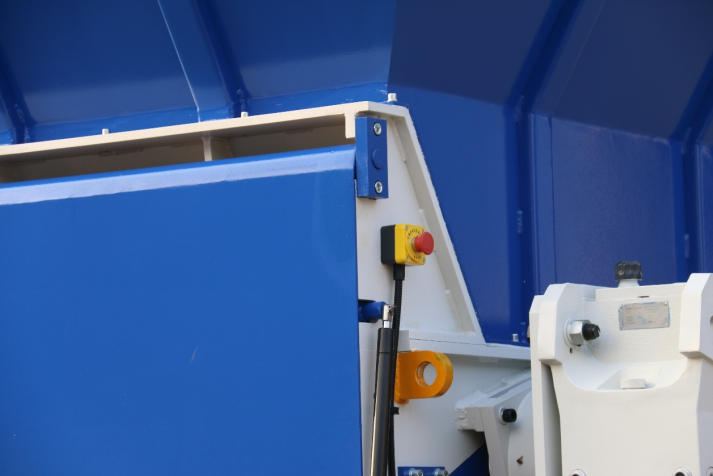

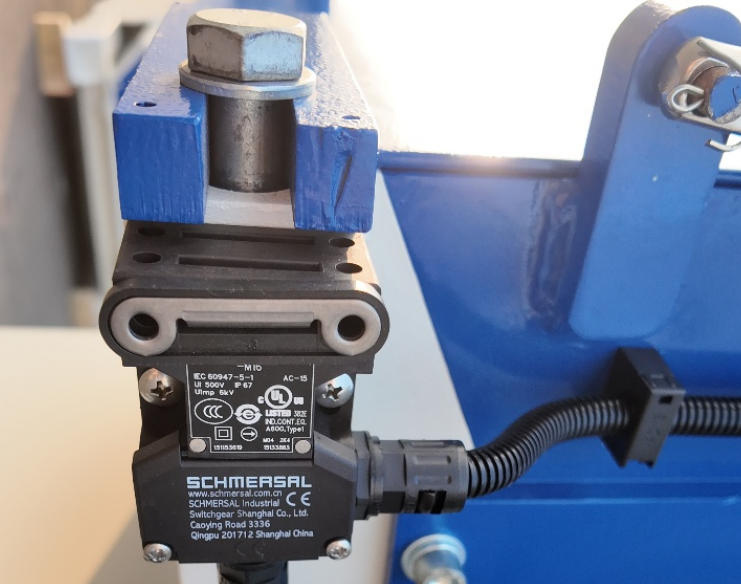

A side-mounted emergency stop, fixed guards around all moving parts, and interlocked access doors with tongue-operated safety switches; opening any guarded area immediately cuts power and prevents accidental contact with moving parts during operation or maintenance.

넳 넲

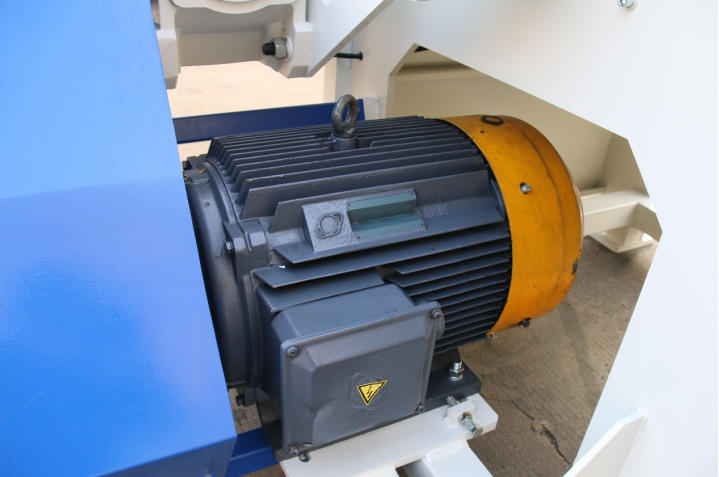

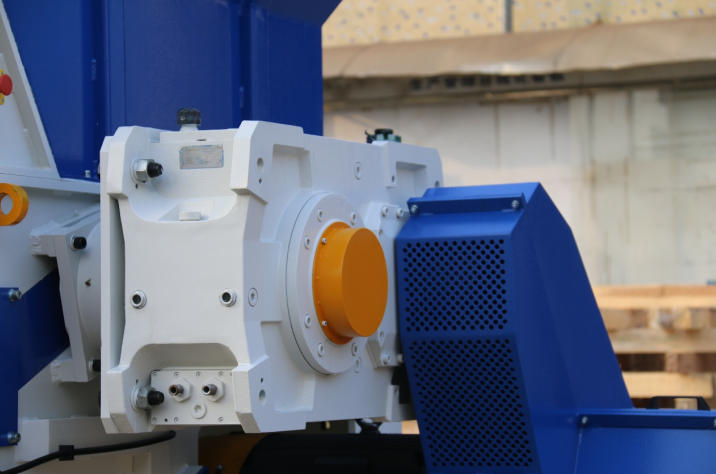

Driving system

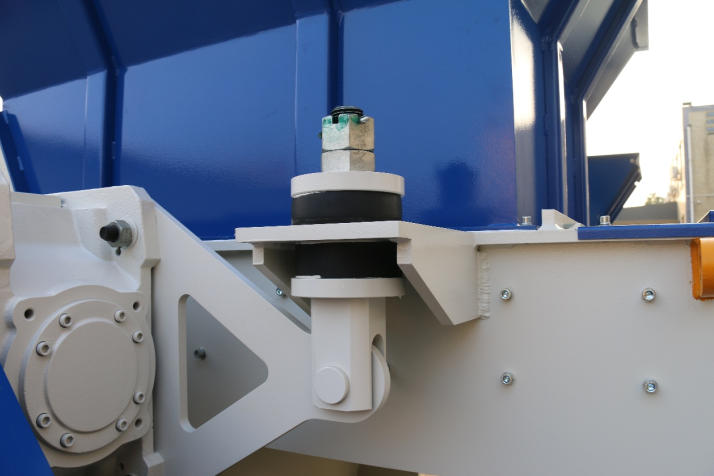

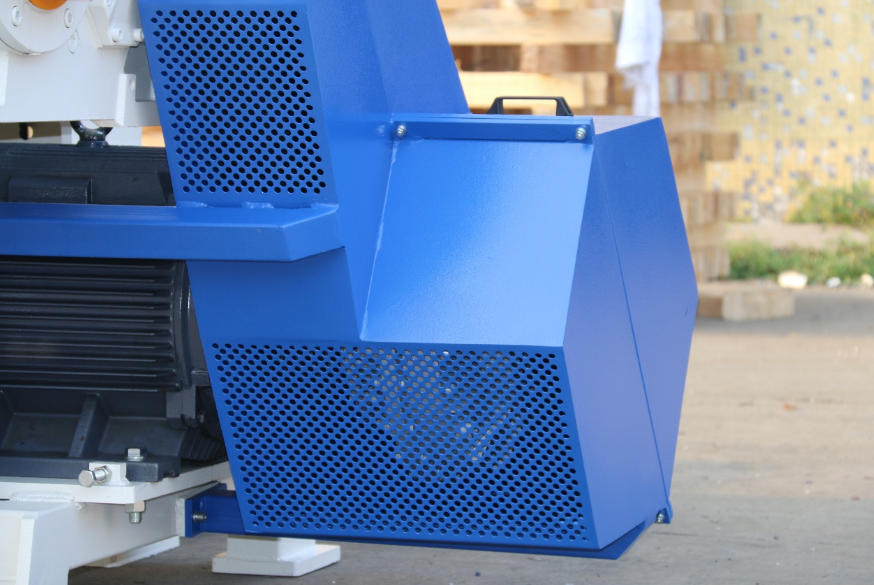

High-efficiency electric motor directly coupled to a heavy-duty gearbox. The gearbox is mounted on a flexible base to isolate cutter impacts from the drive. On medium and larger models, a fluid coupling is installed between motor and gearbox to ensure smooth start-up and protect the drivetrain under shock loads.

넳 넲

Ergonomic design

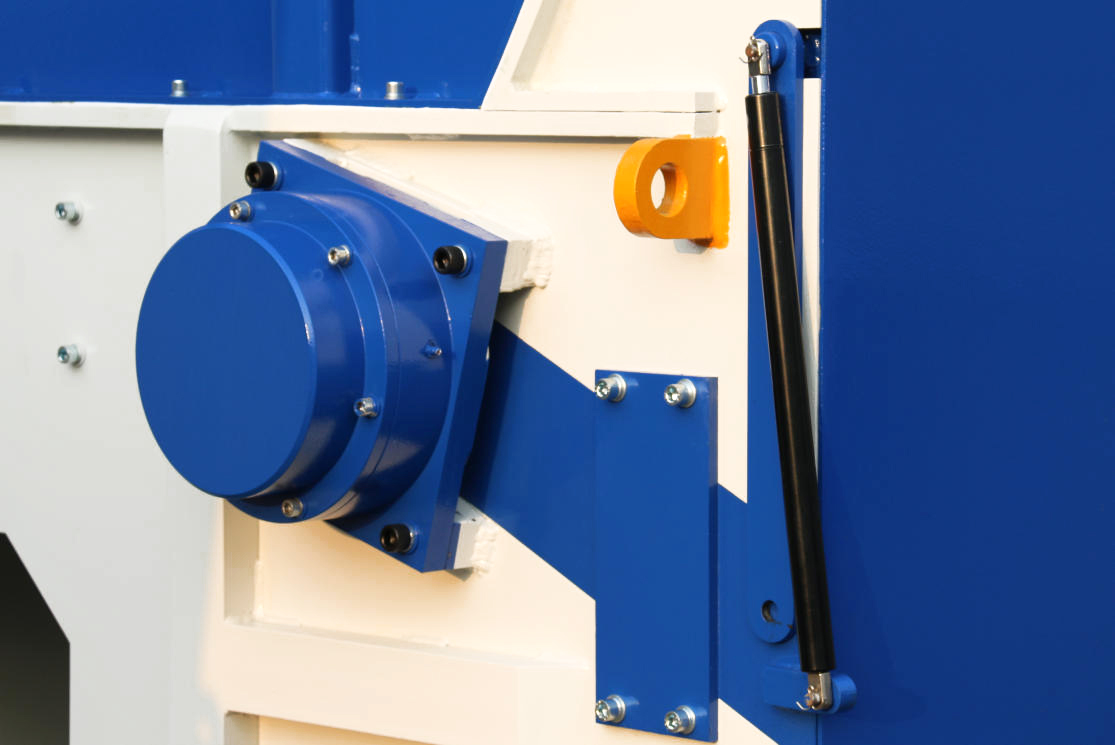

The screen cover is supported by gas struts, allowing one person to lift and hold it open easily for routine inspection and maintenance, and heavier components are equipped with convenient lifting handles to make handling safer and easier.
