GRANULATOR
PC series granulators crush plastic, metal, paper, electronic waste, rubber and tires—including plastic lumps, films, sheets, pipes and hollow containers in various forms. To boost efficiency, they use different rotors for different recycled materials. Materials are precisely cut between rotor and stator knives, then reduced to uniform regrind size via the fitted screen. Optional bagging units and soundproof covers are available per customer needs. The cutting chamber’s split structure enables easy cleaning, blade replacement and maintenance..
◆ Plastics - molding, profiles, films, etc.
◆ Rubber - tire, rubber, rubber products, etc.
◆ Paper and paperboard - confidential documents, production waste,
packaging materials, etc.
◆ Copper cables - household, telecommunication and industrial cables, including s.w.a. Textiles - carpets (rolls and tiles), etc.
◆ Foam - production waste, etc.
APPLICATIONS
TECHNICAL FEATURES
◆ Materials are cleanly cut between the rotor and stator knives, then reduced to a uniform size determined by the screen hole diameter. This one-pass shredding delivers high throughput, consistent output size, and an excellent granulate surface finish. Featuring a modular design and multiple rotor options, the PC series offers outstanding versatility for plastic recycling, light metal crushing, rubber processing, and general regrind applications.

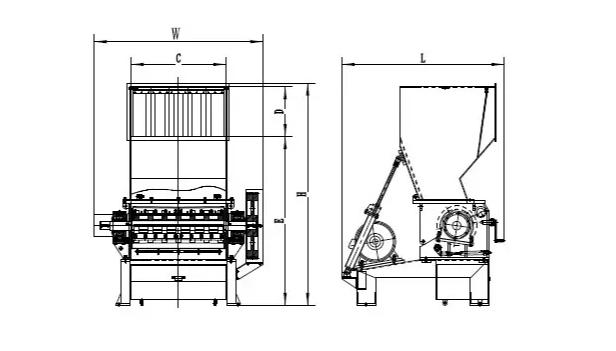

| Item Model | PC2660 | PC3260 | PC3280 | PC4280 | PC42100 | PC42120 |

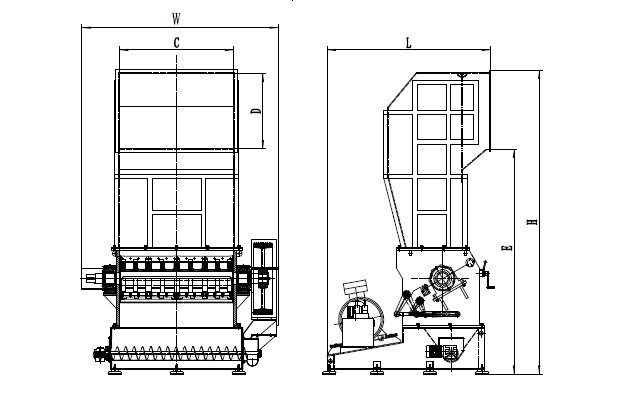

| Dimension L/W/H (mm) | 1483×1328×1740 | 1486×1368×1711 | 1586×1568×1814 | 1770×1642×2425 | 1770×1842×2425 | 1760×2221×2530 |
| Cutting Chamber C/D (mm) | 634×437 | 634×475 | 834×475 | 834×540 | 1034×540 | 1234×425 |
| Height of discharge port E (mm) | 1567 | 1269 | 1369 | 1842 | 1842 | 1947 |
| Rotor Diameter (mm) | φ260 | φ320 | φ320 | φ420 | φ420 | φ420 |
| Main Shaft Speed (r/min) | 591 | 444 | 627 | 466 | 466 | 462 |
| Screen Mesh (mm) | φ8 | φ12 | φ12 | φ12 | φ12 | φ12 |
| Rotor-knives (pcs) | 3×2 | 3×2 | 3×2 | 3×2 | 3×2 | 3×2 |
| Stator-knives (pcs) | 2×2 | 1×2 | 2×2 | 2×2 | 2×2 | 2×2 |
| Main Motor Power (kw) | 15 | 15 | 22 | 37 | 45 | 55 |
| Weight (kg) | 1020 | 1470 | 1730 | 2600 | 3230 | 3650 |
The PC26-PC42 range of Granulators is our conventional range of small to medium size Granulators. Thebody of the machine is made of welded by rigid steel structure. Suitable for processing a wide range of mate.rials including: plastic lump, sheet, plastic film, rubber, etc.
The PC52-PC80 range of granulators is our large-scale granulator series. It is designed for recycling hard and thick materials, such as profiles, tubes, large-sized solid materials, defective products, etc.
|
Model ltem |
WT66150 |
WT66200 |
WT66250 |
WT66300 |
WT66400 |
|---|---|---|---|---|---|
|
Dimension L/W/H(mm) |
4100×3450×3000 |
4100×3950×3000 |
4100×4450×3000 |
4100×6800×3000 |
4100×6800×3000 |
|
Cutting Chamber C/D(mm) |
1885×1500 |
1885×2000 |
1885×2500 |
1855×3000 |
1855×4000 |
|
Height of discharge port H(mm) |
1020 |
1020 |
1020 |
1020 |
1020 |
|
Cylinder Stroke (mm) |
1000 |
1000 |
1000 |
1000 |
1000 |
|
Rotor Diameter (mm) |
φ650 |
φ650 |
φ650 |
φ650 |
φ650 |
|
Main Shaft Speed (r/min) |
75 |
75 |
75 |
75 |
75 |
|
Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
φ40 |
φ40 |
|
Rotor-knives(pcs) |
126+4 |
158+4 |
225+4 |
291+4 |
363+4 |
|
Stator-knives (pcs) |
3 |
4 |
5 |
6 |
8 |
|
Main Motor Power (kw) |
75+75 |
90+90 |
110+110 |
132+132 |
160+160 |
|
Hydraulic Motor Power (kw) |
7.5 |
11 |
11 |
11 |
11 |
|
Weight (kg) |
12100 |
13000 |
18000 |
22000 |
28500 |
Hammer crushers are core equipment in recycling lines for batteries, electrode sheets, wood, etc. Their mainframe features alloy steel welding with stress relief, cabinets with dense reinforcing plates, and alloy steel blades with toughness, impact resistance and wear resistance. The equipment offers low labor intensity, easy maintenance, good crushing effect and high bulk density, suitable for primary/secondary crushing.
Vertical crushers are mainly used for crushing and recycling thin, low-strength metal materials or non-metallic brittle materials, such as waste materials like car shells, refrigerator casings and computer cases. They can also handle relatively large hollow materials. Iron materials crushed by this machine are more compact with a bulk density over 1200 kg/m³, meeting customers' needs for small-sized output with large capacity. The equipment can also be used as secondary crushing equipment.

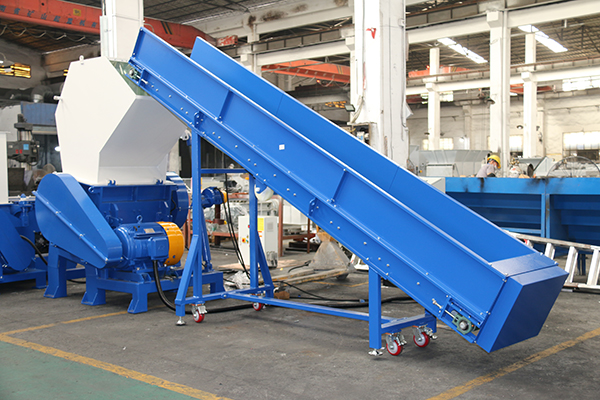

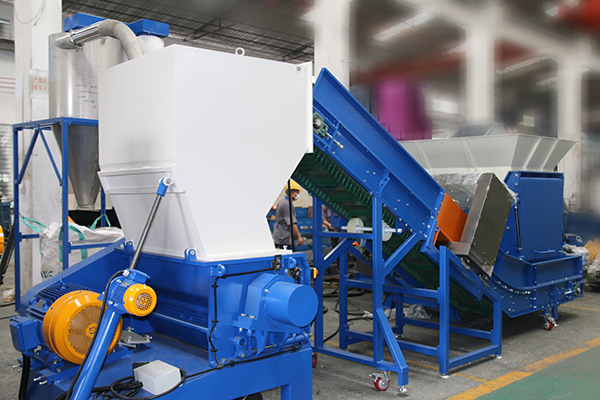

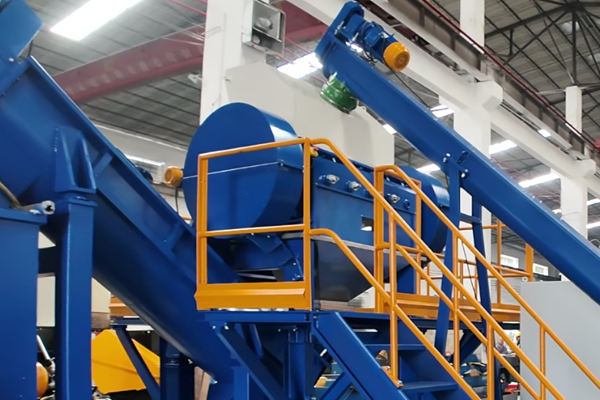

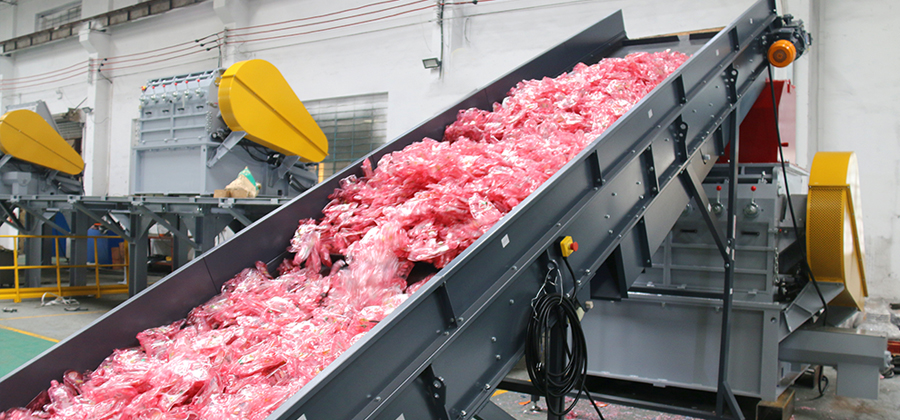

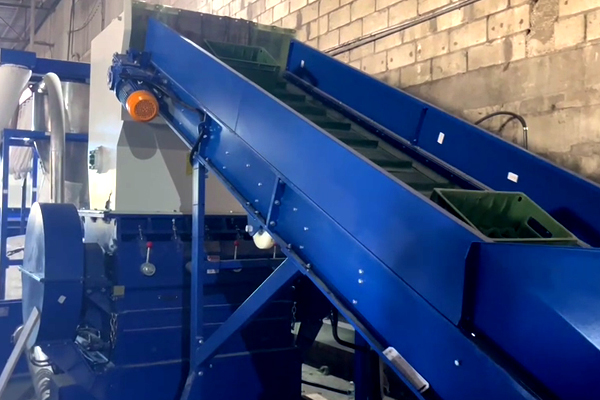

Success stories
You can see these waste materials being shredded
PARAMETERS

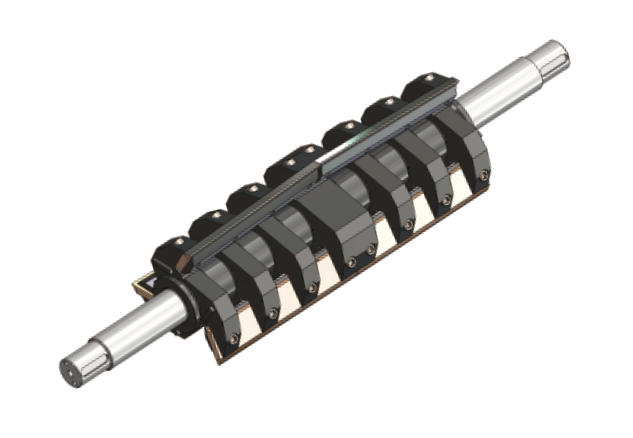

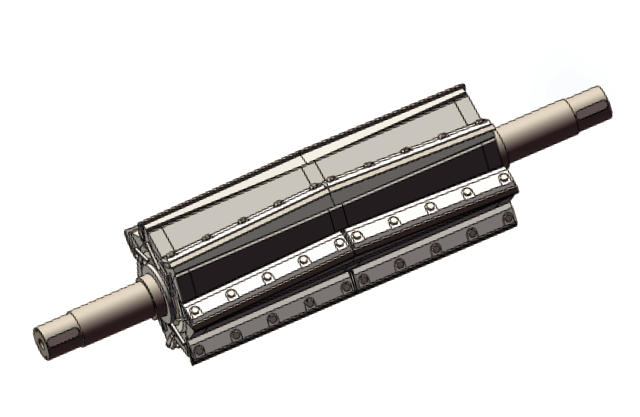

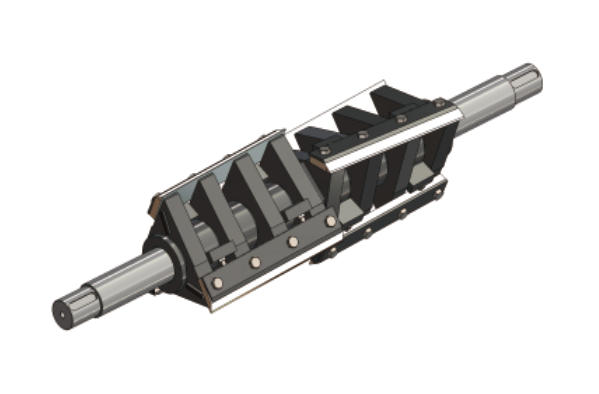

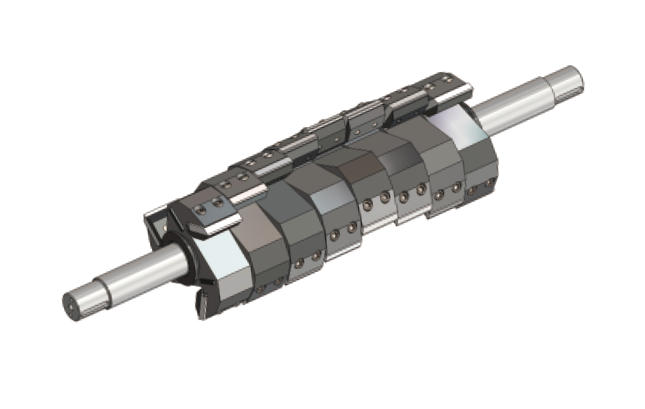

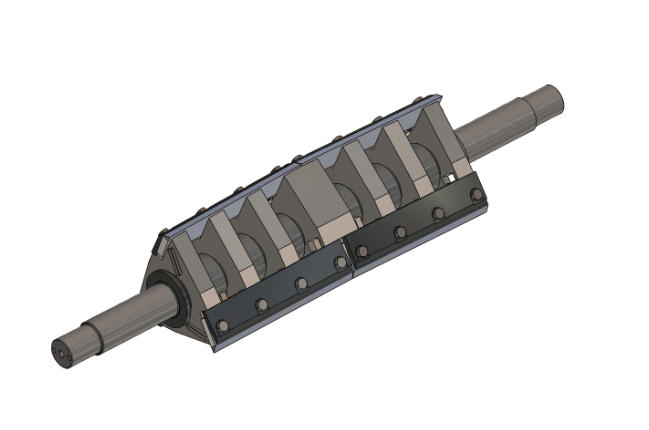

Rotor Variations
Using different rotors for different recycled materials can significantly improve capacity and quality, while extending the blade’s service life.
