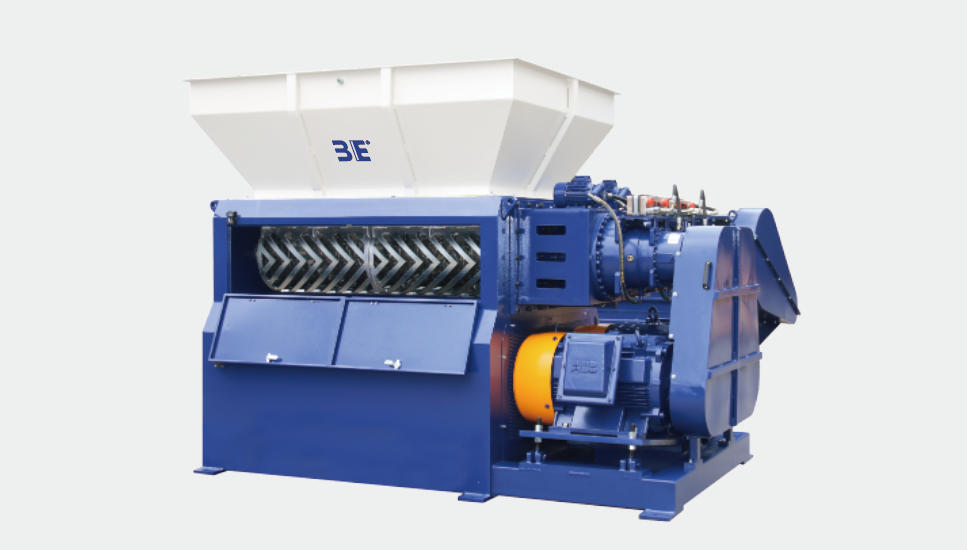

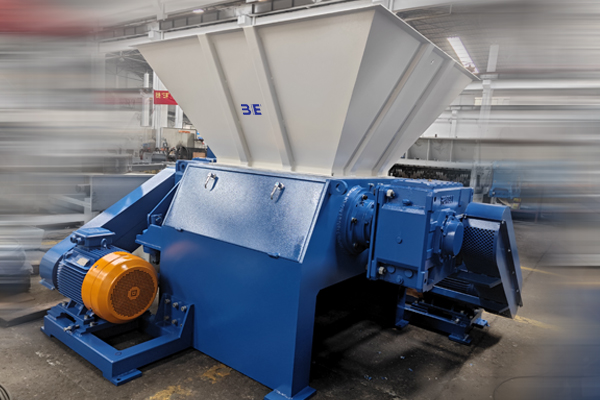

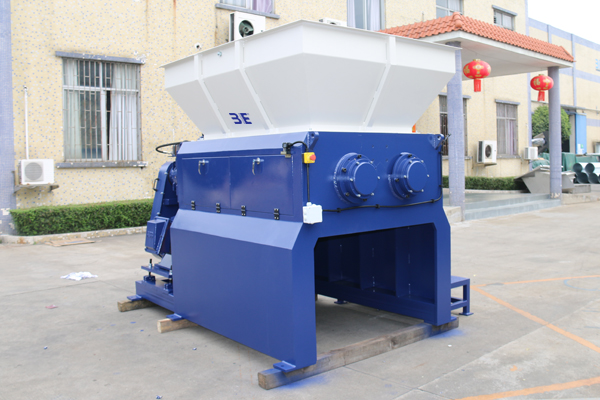

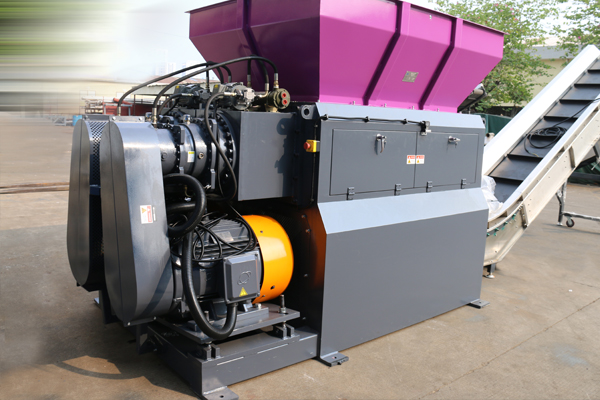

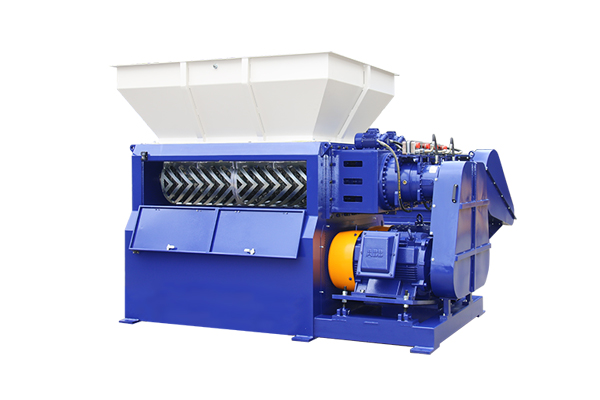

FILM SHREDDER
Transform your waste management and recycling processes with our Single-Shaft Shredder—a proven, high-performance machine engineered to tackle tough, flexible, and bulky materials with precision. Designed for industries prioritizing efficiency, reliability, and cost-effectiveness, this shredder turns unmanageable waste into uniform, process-ready particles, empowering your business to boost productivity and support sustainability goals.
APPLICATIONS
TECHNICAL FEATURES
◆ Specifically designed for soft materials, it significantly improves efficiency.
◆ NO PUSHER REQUIRED: It is more efficient as materials can be fed directly.
◆ Independent control electric box, Siemens PLC control

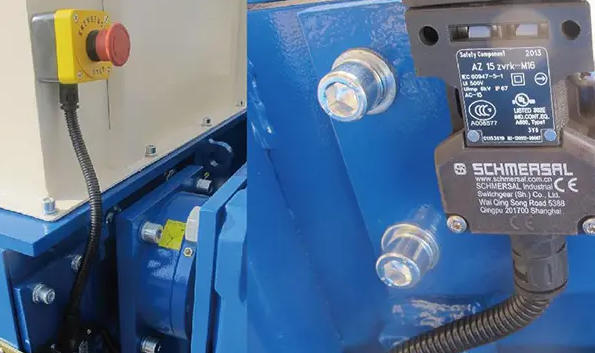

◆ The whole system meets the CE safety standard
|
Medel ltem |
WT4080 |
WT40100 |
WT40120 |
|
|---|---|---|---|---|
|

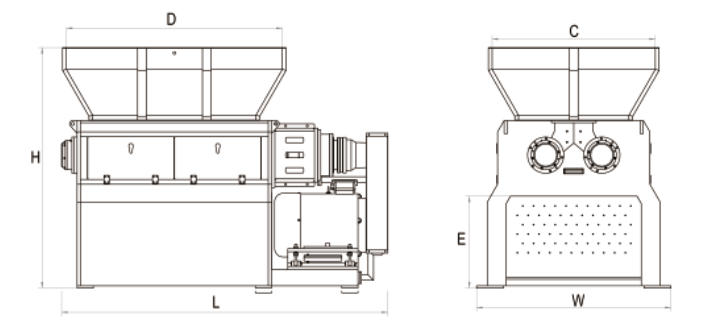

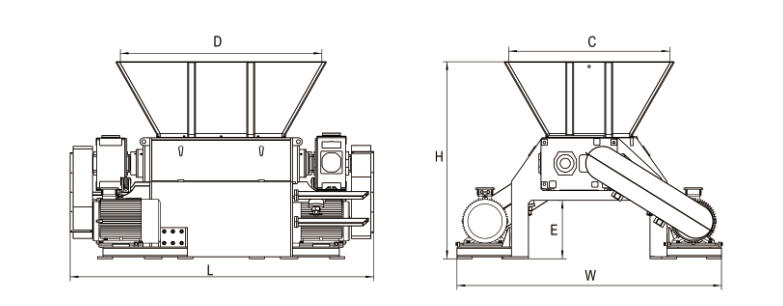

Dimension L/W/H(mm) |
2843×1747×1875 |
2843×2004×1875 |
2843×2564×1975 |
|
|
Cutting Chamber C/D(mm) |
1410×800 |
1410×1000 |
1410×1200 |
|
|
Height of discharge port H(mm) |
500 |
500 |
500 |
|
|
Cylinder Stroke (mm) |
900 |
900 |
900 |
|
|
Rotor Diameter (mm) |
φ390.9 |
φ390.3 |
φ390.3 |
|
|
Main Shaft Speed (r/min) |
74 |
74 |
74 |
|
|

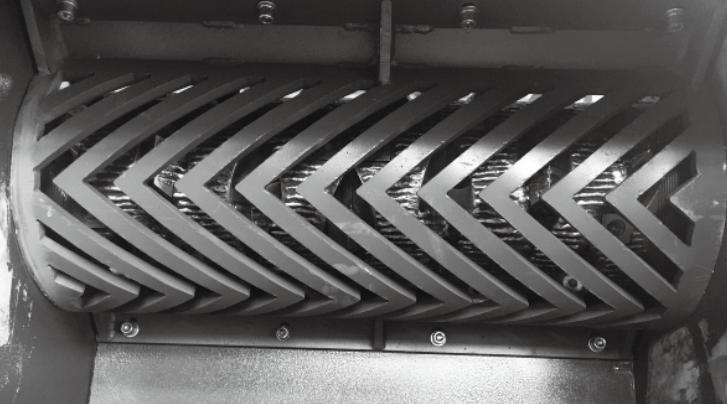

Screen Mesh (mm) |
φ40 |
φ40 |
φ40 |
|
|

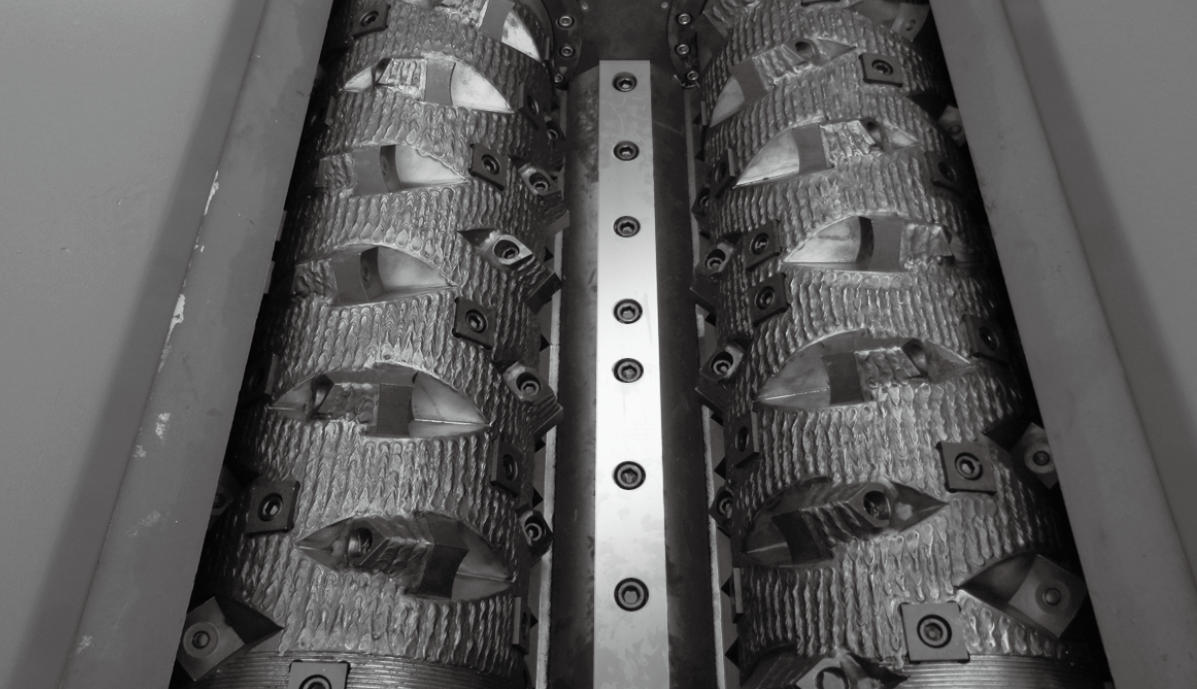

Rotor-knives(pcs) |
42+4 |
54+4 |
66+4 |
|
|
Stator-knives (pcs) |
2 |
2 |
2 |
|
|
Main Motor Power (kw) |
37 |
45 |
55 |
|
|

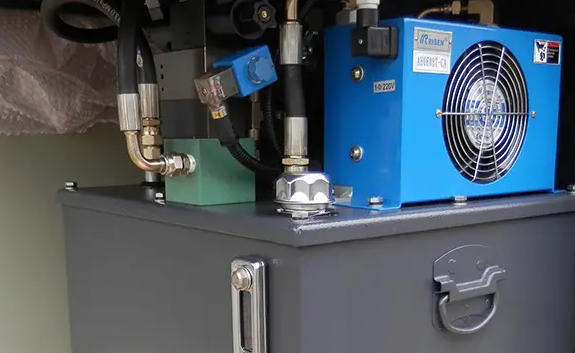

Hydraulic Motor Power (kw) |
2.2 |
2.2 |
5.5 |
|
|
Weight (kg) |
3500 |
4000 |
5300 |
|

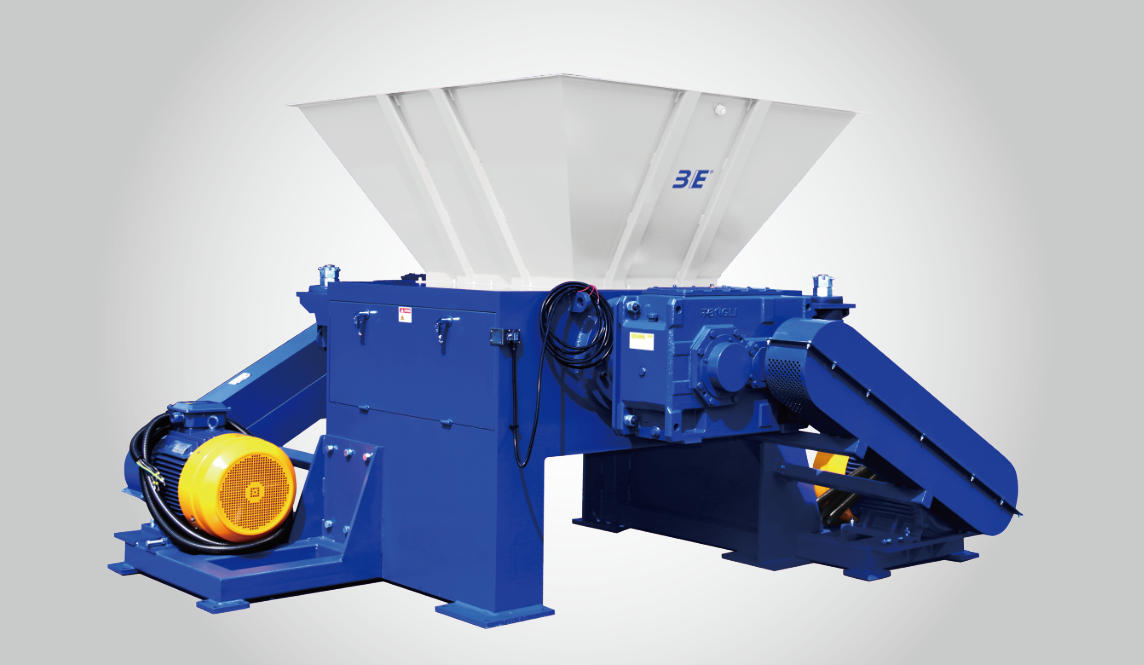

| Model ltem | WTF40150 | WFT48150 |
| Dimension L/W/H(mm) | 3040×1800×2225 | 2466×1478×1700 |
| Hopper Opening(mm) | 1510×2020 | 1200×800 |
| Height of discharge port E(mm) | 535 | 500 |
| Rotor Diameter (mm) | φ224.7 | φ300 |
| Main Shaft Speed (r/min) | 83 | 83 |
| Screen Mesh (mm) | φ25 | φ40 |
| Rotor-knives(pcs) | 32 | 46 |
| Stator-knives (pcs) | 2+2 | 2 |
| Main Motor Power (kw) | 18.5 | 30 |
| Hydraulic Motor Power (kw) | 2.2 | 2.2 |
| Weight (kg) | 1600 | 2600 |
Success stories
You can see these waste materials being shredded
